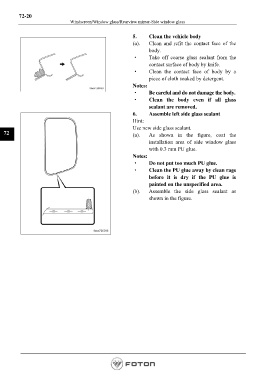

72-20
Windscreen/Window glass/Rearview mirror-Side window glass

5. Clean the vehicle body
(a). Clean and refit the contact face of the
body.
· Take off coarse glass sealant from the
contact surface of body by knife.
· Clean the contact face of body by a
piece of cloth soaked by detergent.
Notes:
· Be careful and do not damage the body.
· Clean the body even if all glass
sealant are removed.
6. Assemble left side glass sealant
Hint:
Use new side glass sealant.
72 (a). As shown in the figure, coat the
installation area of side window glass
with 0.3 mm PU glue.
Notes:
· Do not put too much PU glue.
· Clean the PU glue away by clean rags
before it is dry if the PU glue is
painted on the unspecified area.
(b). Assemble the side glass sealant as
shown in the figure.
