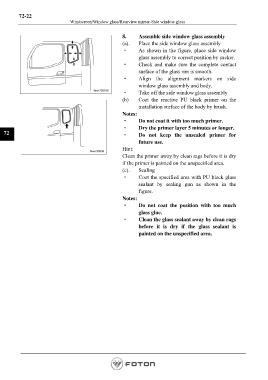

72-22
Windscreen/Window glass/Rearview mirror-Side window glass

8. Assemble side window glass assembly
(a). Place the side window glass assembly
· As shown in the figure, place side window
glass assembly to correct position by sucker.
· Check and make sure the complete contact
surface of the glass rim is smooth.
· Align the alignment markers on side
window glass assembly and body.
· Take off the side window glass assembly
(b) Coat the reactive PU black primer on the
installation surface of the body by brush.
Notes:
· Do not coat it with too much primer.
· Dry the primer layer 5 minutes or longer.
72 · Do not keep the unsealed primer for
future use.
Hint:
Clean the primer away by clean rags before it is dry
if the primer is painted on the unspecified area.
(c). Sealing
· Coat the specified area with PU black glass
sealant by sealing gun as shown in the
figure.
Notes:
· Do not coat the position with too much
glass glue.
· Clean the glass sealant away by clean rags
before it is dry if the glass sealant is
painted on the unspecified area.
