P. 1433
72-21
Windscreen/Window glass/Rearview mirror-Side window glass

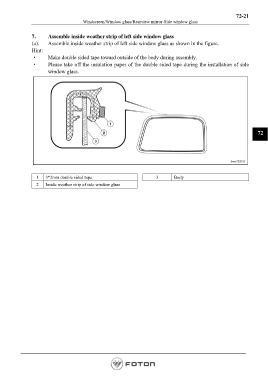

7. Assemble inside weather strip of left side window glass
(a). Assemble inside weather strip of left side window glass as shown in the figure.
Hint:
· Make double sided tape toward outside of the body during assembly.
· Please take off the insulation paper of the double sided tape during the installation of side
window glass.
72
1 3*2mm double sided tape 3 Body
2 Inside weather strip of side window glass
