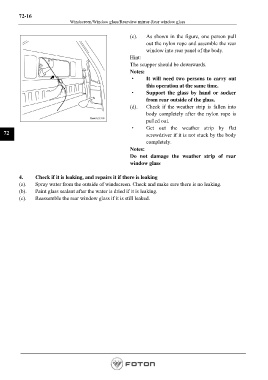

Page 1428 - Workshop Manual - Aumark (BJ1051)

72-16
Windscreen/Window glass/Rearview mirror-Rear window glass

(c). As shown in the figure, one person pull
out the nylon rope and assemble the rear
window into rear panel of the body.
Hint:
The scupper should be downwards.
Notes:
· It will need two persons to carry out
this operation at the same time.
· Support the glass by hand or sucker
from rear outside of the glass.
(d). Check if the weather strip is fallen into
body completely after the nylon rope is
pulled out.
· Get out the weather strip by flat
72 screwdriver if it is not stuck by the body
completely.
Notes:
Do not damage the weather strip of rear
window glass

4. Check if it is leaking, and repairs it if there is leaking
(a). Spray water from the outside of windscreen. Check and make sure there is no leaking.
(b). Paint glass sealant after the water is dried if it is leaking.
(c). Reassemble the rear window glass if it is still leaked.
