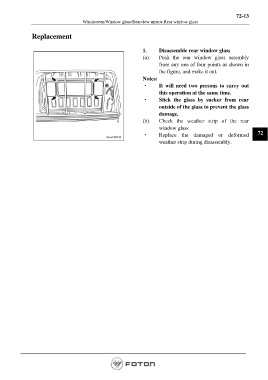

Page 1425 - Workshop Manual - Aumark (BJ1051)
P. 1425
72-13
Windscreen/Window glass/Rearview mirror-Rear window glass
Replacement
1. Disassemble rear window glass
(a). Push the rear window glass assembly
from any one of four points as shown in
the figure, and make it out.
Notes:
· It will need two persons to carry out
this operation at the same time.
· Stick the glass by sucker from rear
outside of the glass to prevent the glass
damage.
(b). Check the weather strip of the rear
window glass
· Replace the damaged or deformed 72
weather strip during disassembly.
Page 1425
