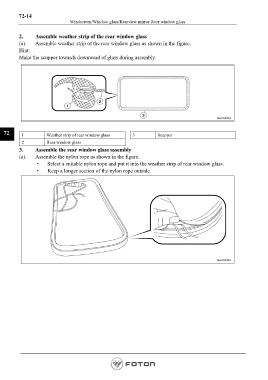

P. 1426
72-14
Windscreen/Window glass/Rearview mirror-Rear window glass
2. Assemble weather strip of the rear window glass
(a). Assemble weather strip of the rear window glass as shown in the figure.
Hint:
Make the scupper towards downward of glass during assembly.
72
1 Weather strip of rear window glass 3 Scupper
2 Rear window glass
3. Assemble the rear window glass assembly
(a). Assemble the nylon rope as shown in the figure.
· Select a suitable nylon rope and put it into the weather strip of rear window glass.
· Keep a longer section of the nylon rope outside.
