P. 1420
72-8
Windscreen/Window glass/Rearview mirror-Front Windscreen

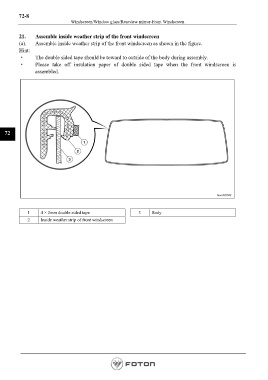

21. Assemble inside weather strip of the front windscreen
(a). Assemble inside weather strip of the front windscreen as shown in the figure.
Hint:
· The double sided tape should be toward to outside of the body during assembly.
· Please take off insulation paper of double sided tape when the front windscreen is
assembled.
72
1 4 × 2mm double sided tape 3 Body
2 Inside weather strip of front windscreen
