P. 1419
72-7

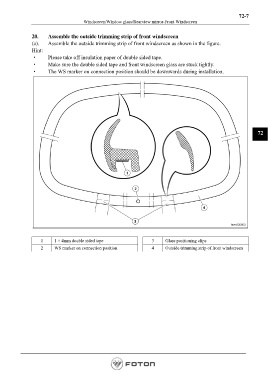

Windscreen/Window glass/Rearview mirror-Front Windscreen
20. Assemble the outside trimming strip of front windscreen
(a). Assemble the outside trimming strip of front windscreen as shown in the figure.
Hint:
· Please take off insulation paper of double sided tape.
· Make sure the double sided tape and front windscreen glass are stuck tightly.
· The WS marker on connection position should be downwards during installation.
72
1 1 × 4mm double sided tape 3 Glass positioning clips
2 WS marker on connection position 4 Outside trimming strip of front windscreen
