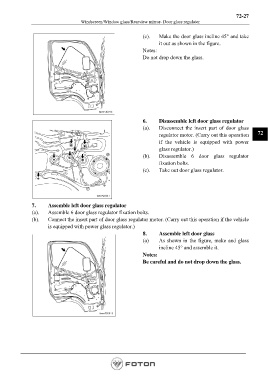

Page 1439 - Workshop Manual - Aumark (BJ1051)

72-27
Windscreen/Window glass/Rearview mirror- Door glass regulator

(e). Make the door glass incline 45° and take
it out as shown in the figure.
Notes:
Do not drop down the glass.

6. Disassemble left door glass regulator
(a). Disconnect the insert part of door glass
regulator motor. (Carry out this operation 72
if the vehicle is equipped with power
glass regulator.)
(b). Disassemble 6 door glass regulator
fixation bolts.
(c). Take out door glass regulator.

7. Assemble left door glass regulator
(a). Assemble 6 door glass regulator fixation bolts.
(b). Connect the insert part of door glass regulator motor. (Carry out this operation if the vehicle
is equipped with power glass regulator.)
8. Assemble left door glass
(a) As shown in the figure, make and glass
incline 45° and assemble it.
Notes:
Be careful and do not drop down the glass.
