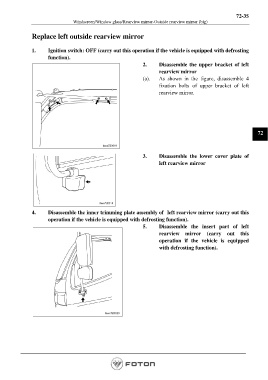

72-35
Windscreen/Window glass/Rearview mirror-Outside rearview mirror (big)

Replace left outside rearview mirror

1. Ignition switch: OFF (carry out this operation if the vehicle is equipped with defrosting
function).
2. Disassemble the upper bracket of left
rearview mirror
(a). As shown in the figure, disassemble 4
fixation bolts of upper bracket of left
rearview mirror.

72

3. Disassemble the lower cover plate of
left rearview mirror

4. Disassemble the inner trimming plate assembly of left rearview mirror (carry out this
operation if the vehicle is equipped with defrosting function).
5. Disassemble the insert part of left
rearview mirror (carry out this
operation if the vehicle is equipped
with defrosting function).
