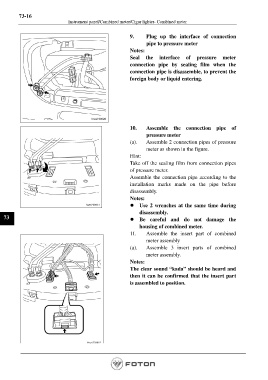

Page 1472 - Workshop Manual - Aumark (BJ1051)

73-16
Instrument panel/Combined meter/Cigar lighter- Combined meter

9. Plug up the interface of connection
pipe to pressure meter
Notes:
Seal the interface of pressure meter
connection pipe by sealing film when the
connection pipe is disassemble, to prevent the
foreign body or liquid entering.

10. Assemble the connection pipe of
pressure meter
(a). Assemble 2 connection pipes of pressure
meter as shown in the figure.
Hint:
Take off the sealing film from connection pipes
of pressure meter.
Assemble the connection pipe according to the
installation marks made on the pipe before
disassembly.
Notes:
z Use 2 wrenches at the same time during
disassembly.
73 z Be careful and do not damage the

housing of combined meter.
11. Assemble the insert part of combined
meter assembly
(a). Assemble 3 insert parts of combined
meter assembly.
Notes:
The clear sound “kada” should be heard and
then it can be confirmed that the insert part
is assembled to position.
