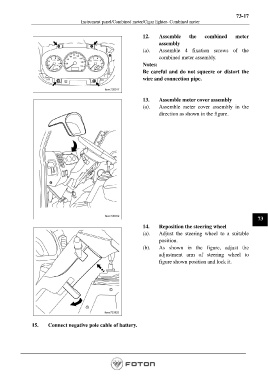

73-17
Instrument panel/Combined meter/Cigar lighter- Combined meter

12. Assemble the combined meter
assembly
(a). Assemble 4 fixation screws of the
combined meter assembly.
Notes:
Be careful and do not squeeze or distort the
wire and connection pipe.

13. Assemble meter cover assembly
(a). Assemble meter cover assembly in the
direction as shown in the figure.

73
14. Reposition the steering wheel
(a). Adjust the steering wheel to a suitable
position.
(b). As shown in the figure, adjust the
adjustment arm of steering wheel to
figure shown position and lock it.

15. Connect negative pole cable of battery.
