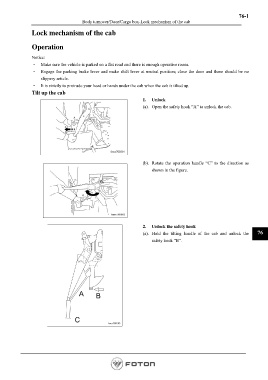

76-1
Body turnover/Door/Cargo box-Lock mechanism of the cab

Lock mechanism of the cab

Operation

Notice:
· Make sure the vehicle is parked on a flat road and there is enough operative room.
· Engage the parking brake lever and make shift lever at neutral position; close the door and there should be no
slippery article.
· It is strictly to protrude your head or hands under the cab when the cab is tilted up.
Tilt up the cab
1. Unlock
(a). Open the safety hook “A” to unlock the cab.

(b). Rotate the operation handle “C” to the direction as
shown in the figure.

2. Unlock the safety hook
(a). Hold the tilting handle of the cab and unlock the 76
safety hook “B”.
