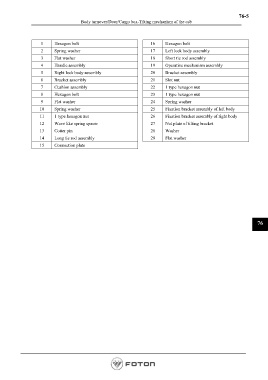

Page 1523 - Workshop Manual - Aumark (BJ1051)

76-5
Body turnover/Door/Cargo box-Tilting mechanism of the cab

1 Hexagon bolt 16 Hexagon bolt
2 Spring washer 17 Left lock body assembly
3 Flat washer 18 Short tie rod assembly
4 Handle assembly 19 Operative mechanism assembly
5 Right lock body assembly 20 Bracket assembly
6 Bracket assembly 21 Slot nut
7 Cushion assembly 22 1 type hexagon nut
8 Hexagon bolt 23 1 type hexagon nut

9 Flat washer 24 Spring washer
10 Spring washer 25 Fixation bracket assembly of left body
11 1 type hexagon nut 26 Fixation bracket assembly of right body
12 Wave like spring spacer 27 Nut plate of tilting bracket
13 Cotter pin 28 Washer
14 Long tie rod assembly 29 Flat washer

15 Connection plate

76
