76-8
Body turnover/Door/Cargo box-Tilting mechanism of the cab

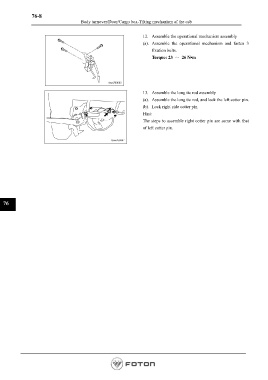

12. Assemble the operational mechanism assembly
(a). Assemble the operational mechanism and fasten 3
fixation bolts.
Torque: 23 ～ 26 N•m

13. Assemble the long tie rod assembly
(a). Assemble the long tie rod, and lock the left cotter pin.
(b). Lock right side cotter pin.
Hint:
The steps to assemble right cotter pin are same with that
of left cotter pin.
