P. 1527
76-9
Body turnover/Door/Cargo box-Tilting mechanism of the cab

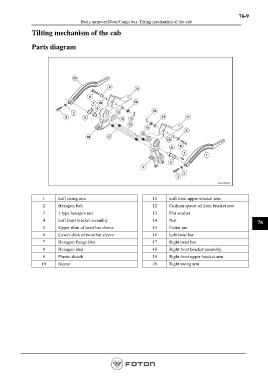

Tilting mechanism of the cab
Parts diagram
1 Left swing arm 11 Left front upper bracket arm
2 Hexagon bolt 12 Cushion spacer of front bracket seat
3 1 type hexagon nut 13 Flat washer
4 Left front bracket assembly 14 Nut 76
5 Upper shim of twist bar sleeve 15 Cotter pin
6 Lower shim of twist bar sleeve 16 Left twist bar
7 Hexagon flange blot 17 Right twist bar
8 Hexagon stud 18 Right front bracket assembly
9 Plastic sheath 19 Right front upper bracket arm
10 Sleeve 20 Right swing arm
