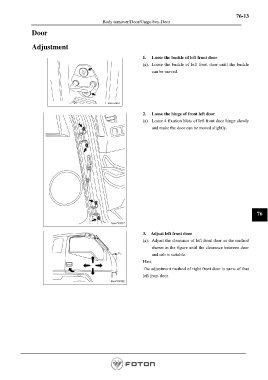

76-13
Body turnover/Door/Cargo box-Door

Door

Adjustment

1. Loose the buckle of left front door
(a). Loose the buckle of left front door until the buckle
can be moved.

2. Loose the hinge of front left door
(a). Loose 4 fixation blots of left front door hinge slowly
and make the door can be moved slightly.

76

3. Adjust left front door
(a). Adjust the clearance of left front door as the method
shown in the figure until the clearance between door
and cab is suitable.
Hint:
The adjustment method of right front door is same of that
left front door.
