P. 1536
76-18
Body turnover/Door/Cargo box-Cargo box

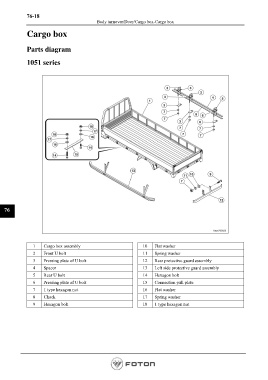

Cargo box
Parts diagram
1051 series
76
1 Cargo box assembly 10 Flat washer
2 Front U bolt 11 Spring washer
3 Pressing plate of U bolt 12 Rear protective guard assembly
4 Spacer 13 Left side protective guard assembly
5 Rear U bolt 14 Hexagon bolt
6 Pressing plate of U bolt 15 Connection pull plate
7 1 type hexagon nut 16 Flat washer
8 Chock 17 Spring washer
9 Hexagon bolt 18 1 type hexagon nut
