Page 1537 - Workshop Manual - Aumark (BJ1051)
P. 1537
76-19

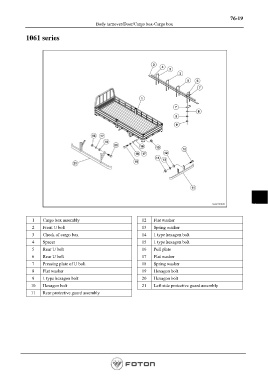

Body turnover/Door/Cargo box-Cargo box
1061 series
76
1 Cargo box assembly 12 Flat washer
2 Front U bolt 13 Spring washer
3 Chock of cargo box 14 1 type hexagon bolt
4 Spacer 15 1 type hexagon bolt
5 Rear U bolt 16 Pull plate
6 Rear U bolt 17 Flat washer
7 Pressing plate of U bolt 18 Spring washer
8 Flat washer 19 Hexagon bolt
9 1 type hexagon bolt 20 Hexagon bolt
10 Hexagon bolt 21 Left side protective guard assembly
11 Rear protective guard assembly
