P. 1538

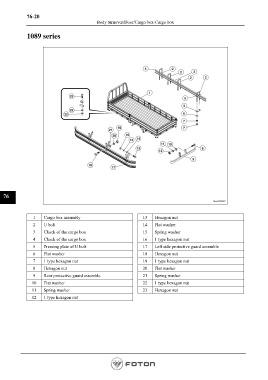

76-20
Body turnover/Door/Cargo box-Cargo box
1089 series
76
1 Cargo box assembly 13 Hexagon nut
2 U bolt 14 Flat washer
3 Chock of the cargo box 15 Spring washer
4 Chock of the cargo box 16 1 type hexagon nut
5 Pressing plate of U bolt 17 Left side protective guard assemble
6 Flat washer 18 Hexagon nut
7 1 type hexagon nut 19 1 type hexagon nut
8 Hexagon nut 20 Flat washer
9 Rear protective guard assemble 21 Spring washer
10 Flat washer 22 1 type hexagon nut
11 Spring washer 23 Hexagon nut
12 1 type hexagon nut
