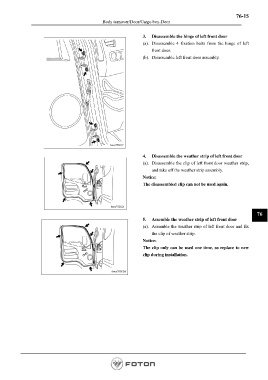

Page 1533 - Workshop Manual - Aumark (BJ1051)
P. 1533
76-15
Body turnover/Door/Cargo box-Door
3. Disassemble the hinge of left front door
(a). Disassemble 4 fixation bolts from the hinge of left
front door.
(b). Disassemble left front door assembly.
4. Disassemble the weather strip of left front door
(a). Disassemble the clip of left front door weather strip,
and take off the weather strip assembly.
Notice:
The disassembled clip can not be used again.
76
5. Assemble the weather strip of left front door
(a). Assemble the weather strip of left front door and fix
the clip of weather strip.
Notice:
The clip only can be used one time, so replace to new
clip during installation.
Page 1533
