76-12

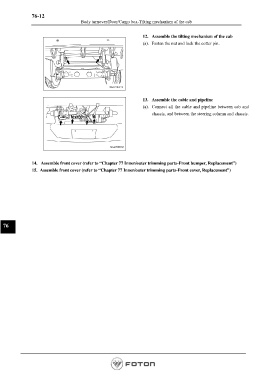

Body turnover/Door/Cargo box-Tilting mechanism of the cab
12. Assemble the tilting mechanism of the cab
(a). Fasten the nut and lock the cotter pin.
13. Assemble the cable and pipeline
(a). Connect all the cable and pipeline between cab and
chassis, and between the steering column and chassis.
14. Assemble front cover (refer to “Chapter 77 Inner/outer trimming parts-Front bumper, Replacement”)
15. Assemble front cover (refer to “Chapter 77 Inner/outer trimming parts-Front cover, Replacement”)
