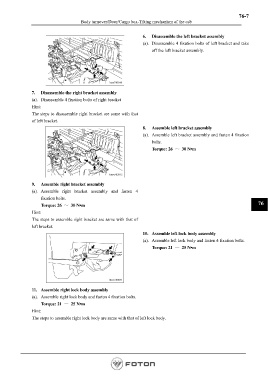

76-7
Body turnover/Door/Cargo box-Tilting mechanism of the cab

6. Disassemble the left bracket assembly
(a). Disassemble 4 fixation bolts of left bracket and take
off the left bracket assembly.

7. Disassemble the right bracket assembly
(a). Disassemble 4 fixation bolts of right bracket
Hint:
The steps to disassemble right bracket are same with that
of left bracket.
8. Assemble left bracket assembly
(a). Assemble left bracket assembly and fasten 4 fixation
bolts.
Torque: 26 ～ 30 N•m

9. Assemble right bracket assembly
(a). Assemble right bracket assembly and fasten 4
fixation bolts.
Torque: 26 ～ 30 N•m 76
Hint:
The steps to assemble right bracket are same with that of
left bracket.
10. Assemble left lock body assembly
(a). Assemble left lock body and fasten 4 fixation bolts.
Torque: 21 ～ 25 N•m

11. Assemble right lock body assembly
(a). Assemble right lock body and fasten 4 fixation bolts.
Torque: 21 ～ 25 N•m
Hint:
The steps to assemble right lock body are same with that of left lock body.
