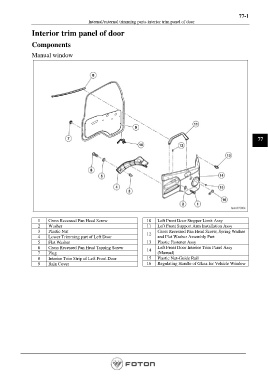

77-1
Internal/external trimming parts-interior trim panel of door

Interior trim panel of door

Components

Manual window

77

1 Cross Recessed Pan Head Screw 10 Left Front Door Stopper Limit Assy
2 Washer 11 Left Front Support Arm Installation Assy
3 Plastic Nut 12 Cross Recessed Pan Head Screw, Spring Washer
4 Lower Trimming part of Left Door and Flat Washer Assembly Part
5 Flat Washer 13 Plastic Fastener Assy
6 Cross Recessed Pan Head Tapping Screw 14 Left Front Door Interior Trim Panel Assy
7 Plug (Manual)
8 Interior Trim Strip of Left Front Door 15 Plastic Nut-Guide Rail
9 Rain Cover 16 Regulating Handle of Glass for Vehicle Window
