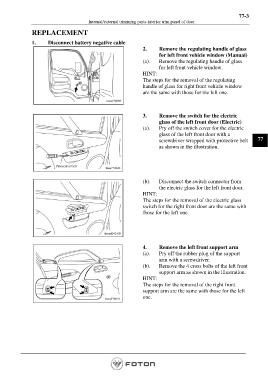

Internal/external trimming parts-interior trim panel of door

REPLACEMENT

1. Disconnect battery negative cable
2. Remove the regulating handle of glass
for left front vehicle window (Manual)
(a). Remove the regulating handle of glass
for left front vehicle window.
HINT:
The steps for the removal of the regulating
handle of glass for right front vehicle window
are the same with those for the left one.

3. Remove the switch for the electric
glass of the left front door (Electric)
(a). Pry off the switch cover for the electric
glass of the left front door with a
screwdriver wrapped with protective belt 77
as shown in the illustration.

Protective belt

(b). Disconnect the switch connector from
the electric glass for the left front door.
HINT:
The steps for the removal of the electric glass
switch for the right front door are the same with
those for the left one.

4. Remove the left front support arm
(a). Pry off the rubber plug of the support
arm with a screwdriver.
(b). Remove the 4 cross bolts of the left front
support arm as shown in the illustration.
HINT:
The steps for the removal of the right front
support arm are the same with those for the left
one.
