P. 1544
77-2

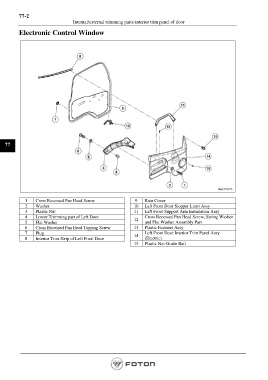

Internal/external trimming parts-interior trim panel of door
Electronic Control Window
77
1 Cross Recessed Pan Head Screw 9 Rain Cover
2 Washer 10 Left Front Door Stopper Limit Assy
3 Plastic Nut 11 Left Front Support Arm Installation Assy
4 Lower Trimming part of Left Door 12 Cross Recessed Pan Head Screw, Spring Washer
5 Flat Washer and Flat Washer Assembly Part
6 Cross Recessed Pan Head Tapping Screw 13 Plastic Fastener Assy
7 Plug 14 Left Front Door Interior Trim Panel Assy
8 Interior Trim Strip of Left Front Door (Electric)
15 Plastic Nut-Guide Rail
