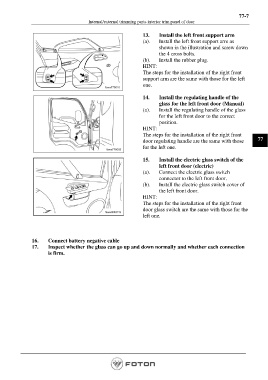

77-7
Internal/external trimming parts-interior trim panel of door

13. Install the left front support arm
(a). Install the left front support arm as
shown in the illustration and screw down
the 4 cross bolts.
(b). Install the rubber plug.
HINT:
The steps for the installation of the right front
support arm are the same with those for the left
one.

14. Install the regulating handle of the
glass for the left front door (Manual)
(a). Install the regulating handle of the glass
for the left front door to the correct
position.
HINT:
The steps for the installation of the right front
door regulating handle are the same with those 77
for the left one.

15. Install the electric glass switch of the
left front door (electric)
(a). Connect the electric glass switch
connector to the left front door.
(b). Install the electric glass switch cover of
the left front door.
HINT:
The steps for the installation of the right front
door glass switch are the same with those for the
left one.

16. Connect battery negative cable
17. Inspect whether the glass can go up and down normally and whether each connection
is firm.
