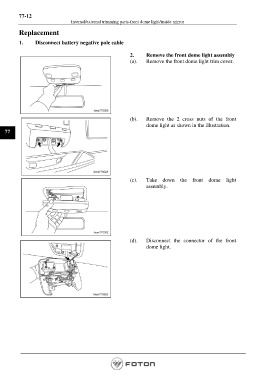

Page 1554 - Workshop Manual - Aumark (BJ1051)

77-12
Internal/external trimming parts-front dome light/inside mirror

Replacement

1. Disconnect battery negative pole cable

2. Remove the front dome light assembly
(a). Remove the front dome light trim cover.

(b). Remove the 2 cross nuts of the front
dome light as shown in the illustration.
77

(c). Take down the front dome light
assembly.

(d). Disconnect the connector of the front
dome light.

Page 1554
