77-17
Internal/external trimming parts-front column shield/grab handle

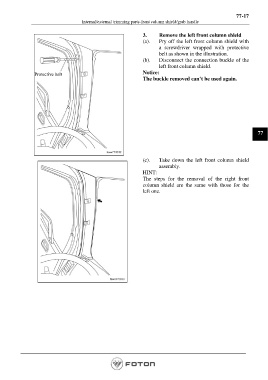

3. Remove the left front column shield
(a). Pry off the left front column shield with
a screwdriver wrapped with protective
belt as shown in the illustration.
(b). Disconnect the connection buckle of the
left front column shield.
Protective belt Notice:
The buckle removed can’t be used again.

77

(c). Take down the left front column shield
assembly.
HINT:
The steps for the removal of the right front
column shield are the same with those for the
left one.
