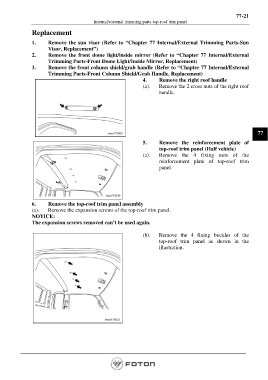

77-21
Internal/external trimming parts-top-roof trim panel

Replacement

1. Remove the sun visor (Refer to “Chapter 77 Internal/External Trimming Parts-Sun
Visor, Replacement”)
2. Remove the front dome light/inside mirror (Refer to “Chapter 77 Internal/External
Trimming Parts-Front Dome Light/Inside Mirror, Replacement)
3. Remove the front column shield/grab handle (Refer to “Chapter 77 Internal/External
Trimming Parts-Front Column Shield/Grab Handle, Replacement)
4. Remove the right roof handle
(a). Remove the 2 cross nuts of the right roof
handle.

77

5. Remove the reinforcement plate of
top-roof trim panel (Half vehicle)
(a). Remove the 4 fixing nuts of the
reinforcement plate of top-roof trim
panel.

6. Remove the top-roof trim panel assembly
(a). Remove the expansion screws of the top-roof trim panel.
NOTICE:
The expansion screws removed can’t be used again.

(b). Remove the 4 fixing buckles of the
top-roof trim panel as shown in the
illustration.
