77-25
Internal/external trimming parts-carpet

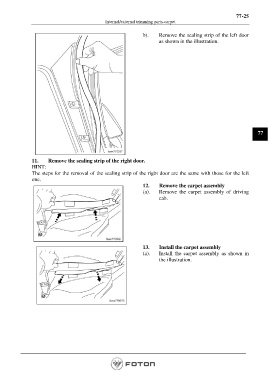

b). Remove the sealing strip of the left door
as shown in the illustration.
77
11. Remove the sealing strip of the right door.
HINT:
The steps for the removal of the sealing strip of the right door are the same with those for the left
one.
12. Remove the carpet assembly
(a). Remove the carpet assembly of driving
cab.
13. Install the carpet assembly
(a). Install the carpet assembly as shown in
the illustration.
