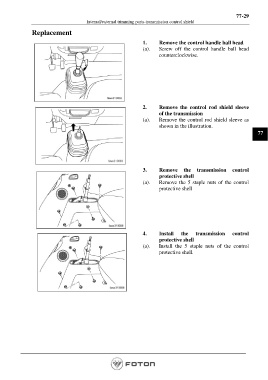

77-29
Internal/external trimming parts-transmission control shield

Replacement

1. Remove the control handle ball head
(a). Screw off the control handle ball head
counterclockwise.

2. Remove the control rod shield sleeve
of the transmission
(a). Remove the control rod shield sleeve as
shown in the illustration.
77

3. Remove the transmission control
protective shell
(a). Remove the 5 staple nuts of the control
protective shell

4. Install the transmission control
protective shell
(a). Install the 5 staple nuts of the control
protective shell.
