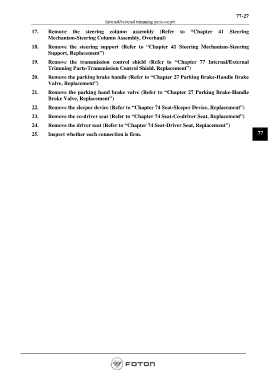

Page 1569 - Workshop Manual - Aumark (BJ1051)

77-27
Internal/external trimming parts-carpet

17. Remove the steering column assembly (Refer to “Chapter 41 Steering
Mechanism-Steering Column Assembly, Overhaul)
18. Remove the steering support (Refer to “Chapter 41 Steering Mechanism-Steering
Support, Replacement”)
19. Remove the transmission control shield (Refer to “Chapter 77 Internal/External
Trimming Parts-Transmission Control Shield, Replacement”)
20. Remove the parking brake handle (Refer to “Chapter 27 Parking Brake-Handle Brake
Valve, Replacement”)

21. Remove the parking hand brake valve (Refer to “Chapter 27 Parking Brake-Handle
Brake Valve, Replacement”)

22. Remove the sleeper device (Refer to “Chapter 74 Seat-Sleeper Device, Replacement”)
23. Remove the co-driver seat (Refer to “Chapter 74 Seat-Co-driver Seat, Replacement”)

24. Remove the driver seat (Refer to “Chapter 74 Seat-Driver Seat, Replacement”)
25. Inspect whether each connection is firm. 77

Page 1569
