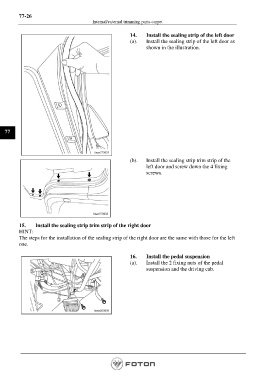

Page 1568 - Workshop Manual - Aumark (BJ1051)
P. 1568
77-26
Internal/external trimming parts-carpet
14. Install the sealing strip of the left door
(a). Install the sealing strip of the left door as
shown in the illustration.
77
(b). Install the sealing strip trim strip of the
left door and screw down the 4 fixing
screws.
15. Install the sealing strip trim strip of the right door
HINT:
The steps for the installation of the sealing strip of the right door are the same with those for the left
one.
16. Install the pedal suspension
(a). Install the 2 fixing nuts of the pedal
suspension and the driving cab.
