Internal/external trimming parts-transmission control shield
Transmission control shield

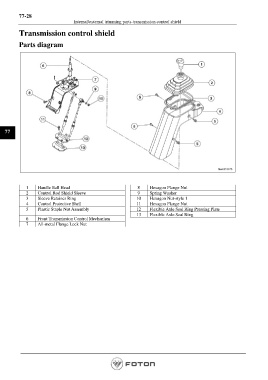

Parts diagram
77
1 Handle Ball Head 8 Hexagon Flange Nut
2 Control Rod Shield Sleeve 9 Spring Washer
3 Sleeve Retainer Ring 10 Hexagon Nut-style 1
4 Control Protective Shell 11 Hexagon Flange Nut
5 Plastic Staple Nut Assembly 12 Flexible Axle Seal Ring Pressing Plate
13 Flexible Axle Seal Ring
6 Front Transmission Control Mechanism
7 All-metal Flange Lock Nut
