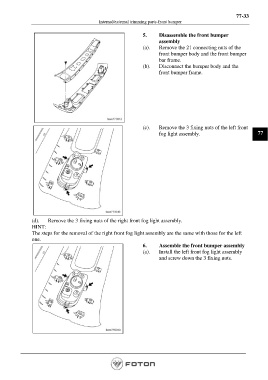

77-33
Internal/external trimming parts-front bumper

5. Disassemble the front bumper
assembly
(a). Remove the 21 connecting nuts of the
front bumper body and the front bumper
bar frame.
(b). Disconnect the bumper body and the
front bumper frame.

(c). Remove the 3 fixing nuts of the left front
fog light assembly. 77

(d). Remove the 3 fixing nuts of the right front fog light assembly.
HINT:
The steps for the removal of the right front fog light assembly are the same with those for the left
one.
6. Assemble the front bumper assembly
(a). Install the left front fog light assembly
and screw down the 3 fixing nuts.
