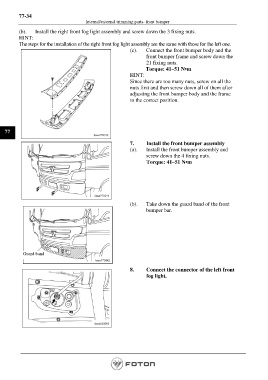

Page 1576 - Workshop Manual - Aumark (BJ1051)

77-34
Internal/external trimming parts- front bumper

(b). Install the right front fog light assembly and screw down the 3 fixing nuts.
HINT:
The steps for the installation of the right front fog light assembly are the same with those for the left one.
(c). Connect the front bumper body and the
front bumper frame and screw down the
21 fixing nuts.
Torque: 41~51 N•m
HINT:
Since there are too many nuts, screw on all the
nuts first and then screw down all of them after
adjusting the front bumper body and the frame
to the correct position.

77

7. Install the front bumper assembly
(a). Install the front bumper assembly and
screw down the 4 fixing nuts.
Torque: 41~51 N•m

(b). Take down the guard band of the front
bumper bar.

Guard band

8. Connect the connector of the left front
fog light.
