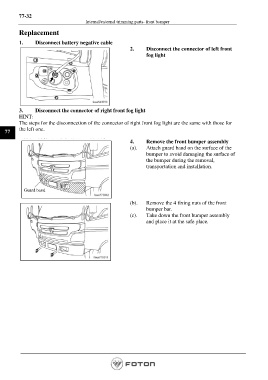

77-32
Internal/external trimming parts- front bumper

Replacement

1. Disconnect battery negative cable
2. Disconnect the connector of left front
fog light

3. Disconnect the connector of right front fog light
HINT:
The steps for the disconnection of the connector of right front fog light are the same with those for
the left one.
77

4. Remove the front bumper assembly
(a). Attach guard band on the surface of the
bumper to avoid damaging the surface of
the bumper during the removal,
transportation and installation.

Guard band

(b). Remove the 4 fixing nuts of the front
bumper bar.
(c). Take down the front bumper assembly
and place it at the safe place.
