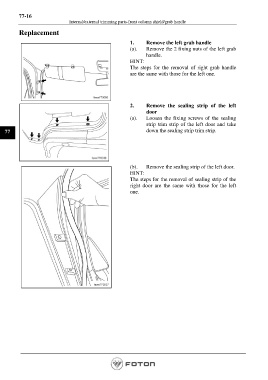

77-16
Internal/external trimming parts-front column shield/grab handle

Replacement

1. Remove the left grab handle
(a). Remove the 2 fixing nuts of the left grab
handle.
HINT:
The steps for the removal of right grab handle
are the same with those for the left one.

2. Remove the sealing strip of the left
door
(a). Loosen the fixing screws of the sealing
strip trim strip of the left door and take
77 down the sealing strip trim strip.

(b). Remove the sealing strip of the left door.
HINT:
The steps for the removal of sealing strip of the
right door are the same with those for the left
one.
