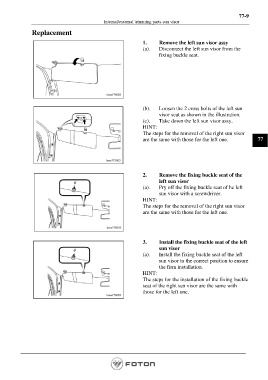

Page 1551 - Workshop Manual - Aumark (BJ1051)

77-9
Internal/external trimming parts-sun visor

Replacement

1. Remove the left sun visor assy
(a). Disconnect the left sun visor from the
fixing buckle seat.

(b). Loosen the 2 cross bolts of the left sun
visor seat as shown in the illustration.
(c). Take down the left sun visor assy.
HINT:
The steps for the removal of the right sun visor
are the same with those for the left one. 77

2. Remove the fixing buckle seat of the
left sun visor
(a). Pry off the fixing buckle seat of he left
sun visor with a screwdriver.
HINT:
The steps for the removal of the right sun visor
are the same with those for the left one.

3. Install the fixing buckle seat of the left
sun visor
(a). Install the fixing buckle seat of the left
sun visor to the correct position to ensure
the firm installation.
HINT:
The steps for the installation of the fixing buckle
seat of the right sun visor are the same with
those for the left one.

Page 1551
