77-10
internal/external trimming parts-sun visor

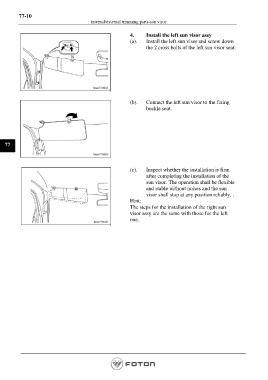

4. Install the left sun visor assy
(a). Install the left sun visor and screw down
the 2 cross bolts of the left sun visor seat.

(b). Connect the left sun visor to the fixing
buckle seat.

77

(c). Inspect whether the installation is firm
after completing the installation of the
sun visor. The operation shall be flexible
and stable without noises and the sun
visor shall stop at any position reliably. .
Hint:
The steps for the installation of the right sun
visor assy are the same with those for the left
one.
