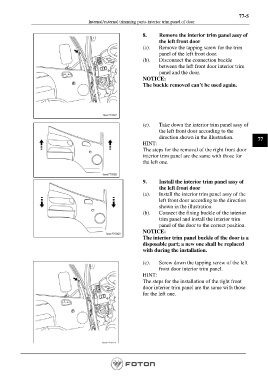

77-5
Internal/external trimming parts-interior trim panel of door

8. Remove the interior trim panel assy of
the left front door
(a). Remove the tapping screw for the trim
panel of the left front door.
(b). Disconnect the connection buckle
between the left front door interior trim
panel and the door.
NOTICE:
The buckle removed can’t be used again.

(c). Take down the interior trim panel assy of
the left front door according to the
direction shown in the illustration. 77
HINT:
The steps for the removal of the right front door
interior trim panel are the same with those for
the left one.

9. Install the interior trim panel assy of
the left front door
(a). Install the interior trim panel assy of the
left front door according to the direction
shown in the illustration.
(b). Connect the fixing buckle of the interior
trim panel and install the interior trim
panel of the door to the correct position.
NOTICE:
The interior trim panel buckle of the door is a
disposable part; a new one shall be replaced
with during the installation.

(c). Screw down the tapping screw of the left
front door interior trim panel.
HINT:
The steps for the installation of the right front
door interior trim panel are the same with those
for the left one.
