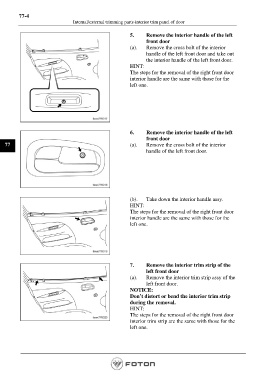

77-4
Internal/external trimming parts-interior trim panel of door

5. Remove the interior handle of the left
front door
(a). Remove the cross bolt of the interior
handle of the left front door and take out
the interior handle of the left front door.
HINT:
The steps for the removal of the right front door
interior handle are the same with those for the
left one.

6. Remove the interior handle of the left
front door
77 (a). Remove the cross bolt of the interior
handle of the left front door.

(b). Take down the interior handle assy.
HINT:
The steps for the removal of the right front door
interior handle are the same with those for the
left one.

7. Remove the interior trim strip of the
left front door
(a). Remove the interior trim strip assy of the
left front door.
NOTICE:
Don’t distort or bend the interior trim strip
during the removal.
HINT:
The steps for the removal of the right front door
interior trim strip are the same with those for the
left one.
