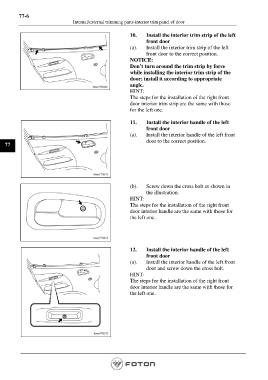

77-6
Internal/external trimming parts-interior trim panel of door

10. Install the interior trim strip of the left
front door
(a). Install the interior trim strip of the left
front door to the correct position.
NOTICE:
Don’t turn around the trim strip by force
while installing the interior trim strip of the
door; install it according to appropriate
angle.
HINT:
The steps for the installation of the right front
door interior trim strip are the same with those
for the left one.

11. Install the interior handle of the left
front door
(a). Install the interior handle of the left front
door to the correct position.
77

(b). Screw down the cross bolt as shown in
the illustration.
HINT:
The steps for the installation of the right front
door interior handle are the same with those for
the left one.

12. Install the interior handle of the left
front door
(a). Install the interior handle of the left front
door and screw down the cross bolt.
HINT:
The steps for the installation of the right front
door interior handle are the same with those for
the left one.
