75-14
Door lock-Door lock

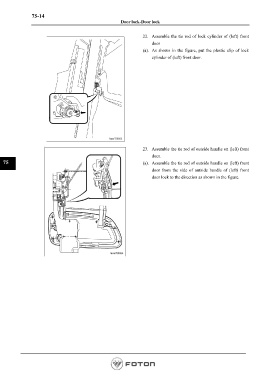

22. Assemble the tie rod of lock cylinder of (left) front
door
(a). As shown in the figure, put the plastic clip of lock
cylinder of (left) front door.
23. Assemble the tie rod of outside handle on (left) front
door.
75 (a). Assemble the tie rod of outside handle on (left) front
door from the side of outside handle of (left) front
door lock to the direction as shown in the figure.
