P. 1512
75-12
Door lock-Door lock

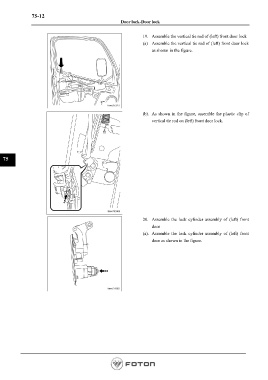

19. Assemble the vertical tie rod of (left) front door lock
(a) Assemble the vertical tie rod of (left) front door lock
as shown in the figure.
(b). As shown in the figure, assemble the plastic clip of
vertical tie rod on (left) front door lock.
75
20. Assemble the lock cylinder assembly of (left) front
door
(a). Assemble the lock cylinder assembly of (left) front
door as shown in the figure.
