P. 1511
75-11
Door lock-Door lock

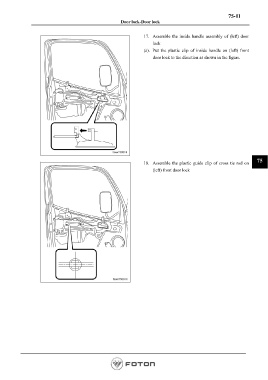

17. Assemble the inside handle assembly of (left) door
lock
(a). Put the plastic clip of inside handle on (left) front
door lock to the direction as shown in the figure.
18. Assemble the plastic guide clip of cross tie rod on 75
(left) front door lock
