P. 1509
75-9
Door lock-Door lock

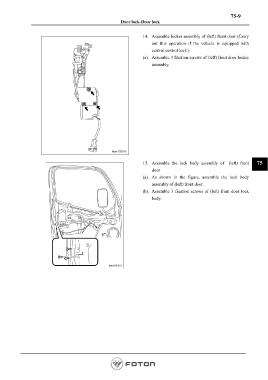

14. Assemble locker assembly of (left) front door (Carry
out this operation if the vehicle is equipped with
central control lock.)
(a). Assemble 3 fixation screws of (left) front door locker
assembly.
15. Assemble the lock body assembly of (left) front 75
door
(a). As shown in the figure, assemble the lock body
assembly of (left) front door.
(b). Assemble 3 fixation screws of (left) front door lock
body.
