75-13
Door lock-Door lock

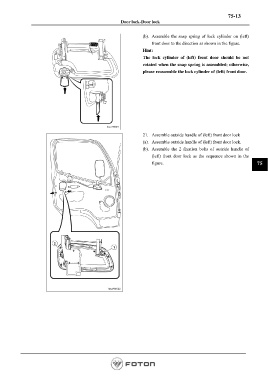

(b). Assemble the snap spring of lock cylinder on (left)
front door to the direction as shown in the figure.
Hint:
The lock cylinder of (left) front door should be not
rotated when the snap spring is assembled; otherwise,
please reassemble the lock cylinder of (left) front door.
21. Assemble outside handle of (left) front door lock
(a). Assemble outside handle of (left) front door lock.
(b). Assemble the 2 fixation bolts of outside handle of
(left) front door lock as the sequence shown in the
figure. 75
