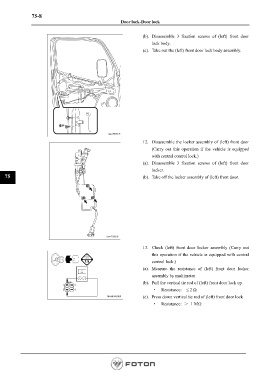

Page 1508 - Workshop Manual - Aumark (BJ1051)

75-8
Door lock-Door lock

(b). Disassemble 3 fixation screws of (left) front door
lock body.
(c). Take out the (left) front door lock body assembly.

12. Disassemble the locker assembly of (left) front door
(Carry out this operation if the vehicle is equipped
with central control lock.)
(a). Disassemble 3 fixation screws of (left) front door
locker.
75 (b). Take off the locker assembly of (left) front door.

13. Check (left) front door locker assembly (Carry out
this operation if the vehicle is equipped with central
control lock.)
(a). Measure the resistance of (left) front door locker
assembly by multimeter.
(b). Pull the vertical tie rod of (left) front door lock up.
· Resistance: ≤ 2 Ω
(c). Press down vertical tie rod of (left) front door lock

· Resistance: ＞ 1 MΩ
